Friday, January 30, 2015

Tuning Rebecca (Linux Mint 17.1 Cinnamon) - Part 2

This is Part 2 of the series - for those who have not read Part 1, click here. In this part, we will continue with connecting more hardware to Rebecca (aka Linux Mint 17.1).

d) Connecting Android Smart Phones and Tablets Using USB

This section describes how to connect Android smart phones and tablets to a Linux Mint 17.1 PC via a USB port. Most modern Android-based smart phones have the built-in capability of being USB connected to a PC. Some also even have software written specifically for communicating with a PC, but the ability to read and write to the storage media is a basic ability of these devices. Connection between PC and most modern Android smart phones uses the 'Media Transfer Protocol' (MTP) - for more information on MTP, click here. Note that MTP is only for file transfers and do NOT have the ability to 'play' a media file (audio or video) located on the device - trying to use a media player on Rebecca to play media files on the phone or tablet will cause errors - some of which can only be cured by a restart of the PC.

The author has two Android smart phones and one Android tablet in his possession. The tablet is an old (by tablet standard) Acer Iconia A500 using Android 4.0.3 (Ice Cream Sandwich) - old but still useful. One of the two smart phones is a China made knockoff of the Samsung Galaxy Note 2 and is using Android 4.1.1 (Jellybean). This phone is still serviceable but because of the limited RAM (512MB!), it drove the author to purchase a real Samsung Galaxy Note 2 - which is now running Android 4.4.2 (KitKat). So having these 3 devices gave me an opportunity to test whether the various Android (4.0.3 to 4.4.2) versions support MTP when connected to Rebecca.


TIP: For the following tests, a KNOWN good USB port on Rebecca was used. The author had some problems with a intermittently working USB port on Rebecca - symptoms were the PC froze solid whenever a device was connected using this USB port. Swapping USB cables did not help. When the problem was determined to lie with the USB port on Rebecca, that port was blocked off and another USB port was used but occasional problems was detected - this time due to 'el-chepo' USB cables. So make sure that you only use known working USB ports and known good USB cables when performing connections from devices to Rebecca.


Starting with the oldest device first, it was connected to a known good USB port on Rebecca using the cable supplied with the tablet. The message 'Connect as a media device' appeared on the tablet and a window popped up on Rebecca (see figure below), plus an icon appeared on the desktop.


Note that the PC correctly identified the device as the 'Acer Iconia Tab A500' and using the file manager, it was possible to browse through both the storage units - internal and SD card - on the tablet. It was also possible to transfer files back and forth between the PC and the tablet using the file manger 'drag and drop' feature. The only hiccup was that the Nemo file manager has a title of 'Unidentified Device' whenever the Acer tablet was connected. To disconnect the tablet, the 'eject' button on the file manager device was clicked upon with the mouse. All in all, it was a successful test.

Next the China made smart phone was connected to Rebecca using the good USB port and the USB cable supplied with the phone. To my surprise, the following screen appeared on the phone.


So I guess that the fake Note 2 phone does not support MTP after all - it still relies on the old-fashioned UMS despite it using Android 4.1.1 (Jellybean). I guess the manufacturer of this phone did not implement MTP for this device. However, and as shown below, it was still possible to browse all the files on the phone's main storage and SD card (an old NOKIA microSD card salvaged from an old Nokia phone) and transfer files back and forth - albeit at a very much slower pace.


Next the genuine Samsung Galaxy Note 2 was connected to Rebecca using the good USB port and the USB cable supplied with the phone. The first thing that happened was a beep from the phone and a notification message that read 'Connected as a media device' briefly appeared on the phone. It does not seem to matter whether phone was asleep or otherwise when connected. On the PC, the file manager popped up and an icon labelled 'GT N7100' appeared on the desktop (see below).


Note that the phone was correctly identified (the correct model number for the Samsung Galaxy Note 2 is GT-N7100) on both the desktop icon and the Nemo file manager. Even the title in the file manager was correct (unlike the Acer A500). It was gratifying to find out that the files on both the storage media on the phone can be browsed by the file manager. It was also possible to transfer files back and forth between the PC and the phone using the file manger 'drag and drop' feature. The MTP file transfer portion worked with the phone with no problem at all. Disconnecting the phone was easy - just right-click on the desktop icon for the phone and select 'Eject'. Alternatively, click on the 'eject' button for the device in the file manager window.

To summarize, Linux Mint 17.1 will handle any Android tablet or smartphone connected to it over USB without any problem or without having to install any other software. Just note that if you stick to file transfer operations only, then you should not encounter any problems.

e) Connecting Apple Devices Using USB

Apple’s devices poses a problem for Linux Mint 17.1 — it doesn’t include MTP support at all. Apple’s iPod, iPhone, and iPad use their own proprietary syncing protocol along with iTunes, so it is understandable that they do not support MTP - a competing protocol. However, the author has the original iPad in his possession and was curious to find out what would happen if he connected this device to Rebecca over USB.

Well, the first thing that happened was 2 windows popped up, one on top of the other (see below). The first asked me what to do with the 'digital photos media', while the second asked me what to do with 'digital media player'.


The second thing that happened was the the Nemo file manager opened up with the iPad listed under 'Devices' as two items as shown below.


Since the file manager was already open, I dismissed the other two windows using the 'Cancel' button. Clicking on the device that identified as my iPad resulted in display shown below.


It was interesting to note that the file manager did detect that there were music and photo files on the iPad and even offer to sync and import these files - using Banshee or gPhoto. Unfortunately these do not work and the end result was not a single file was transferred either way.

Clicking on the Documents on my iPad resulted in the display shown above. Double-clicking on the Readmill icon resulted in a 'Documents' folder being displayed. Note that this folder on the iPad was created by the free Readmill book reader software, which was installed because it was not dependant on Apple's Appstore. I could move ebook files back and forth between the PC and this folder without any problems. Files moved into this folder appeared in the book list and was treated just like another book.

The other two apps shown, 'Chrome' and 'iBooks' each had a Document folder, however, although I could move files from the PC to the iPad, they will not appear in any list. This was probably because the file moved was 'verboten' - it was not 'purchased' through the app store - so it was ignored.

There was another very strange thing that was observed while the iPad connected to the PC - it refuses to recognize any other USB device - for example a USB thumb drive, that was plugged into the PC. The only way to overcome this was to disconnect the iPad and perform a system reboot before connecting any other USB device - only then will the device work properly.

All in all, it was very disappointing that Apple's iPad refuses to work with a Linux Mint 17.1 PC. The moral of this story is "Do not use any Apple device with a Linux Mint 17.1 PC" - I guess this is solely a job for my Apple Mac PC.

f) Connecting Android Smart Phones and Tablets Using Bluetooth

Any Bluetooth devices can be 'paired' with an Linux Mint PC which have Bluetooth devices and services enabled. However, be aware that not all Bluetooth PC 'dongle' will work with Linux Mint. The author had several 'dongle' in his possession, ranging from old ones (which looks like a USB thumb drive) to the latest and very tiny 'dongle'. After testing all the 'dongles', the author found out that only a few worked - and those were the newer models. So, if your 'dongle' does not work with Linux Mint, try another one.

Before attempting to pair a Bluetooth device with a Linux Mint PC, plug in the 'dongle'. Then check the 'notification' area on the bottom right corner of the screen - you should see the Bluetooth icon there if your 'dongle' works with Linux Mint (see figure below).


If the Bluetooth icon is clicked, you should see that Bluetooth services is enabled by default (see figure below).


You can now proceed to pair a Bluetooth device with Linux Mint. As an example, the Acer Iconia A500 tablet will be 'paired' first. Of course, the tablet will need to have it's Bluetooth sevices enabled first, then we need to 'pair' the tablet with the PC. Perform the following steps:

  1. Touch "Settings" on the tablet home screen.
  2. Then enable Bluetooth by touching the 'switch' to 'On'.
  3. Then touch the 'Bluetooth' item and in the right pane of the screen, make sure that the A500 device is visible by by touching the item. While the tablet is visible (a timeout timer will start on the tablet), the following steps need to be performed on the Linux Mint PC.
  4. Click on the Bluetooth icon in the panel of the Linux Mint PC.
  5. Click on the "Set up a New Device...".
  6. The 'Bluetooth New Device Setup' screen (shown below) will appear with the words 'Searching for devices...' on it. After a while (and if the visibilty of the tablet has not timed out), the item "A500" will be listed as shown. Select the device by clicking on it and then the "Continue" button.

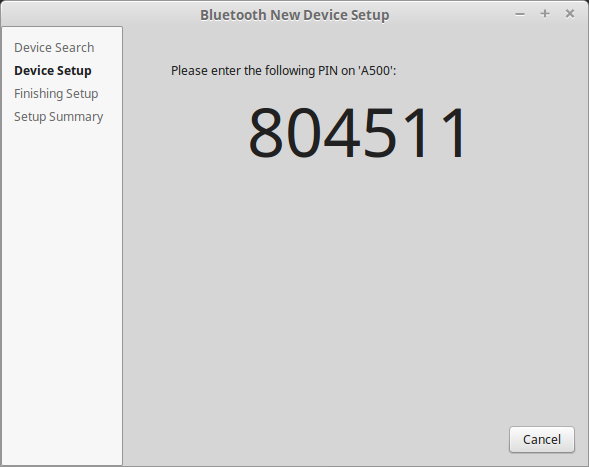

  7. The next screen that will appear on the PC (shown below), will prompt you to enter the indicated PIN number on the tablet. At this time you will also be prompted on the tablet to enter the PIN number indicated on the PC screen.



  8. Enter the PIN number on the tablet, touch "OK" and the screen on Linux Mint will change to the one shown below - indicating success with the pairing. The PC name will also appear on the tablet as one of the paired devices.


Note that you can also rename the Linux Mint PC in the Bluetooth pane of the A500 tablet. To do do, just touch the 'settings' icon (found to the right of the current PC name) and a 'Rename' item will be displayed (see below). Touch the 'Rename' item, then enter the new name.


In my case, I have renamed the PC from 'mint-0' to a more descriptive 'scully64-mint-17,1' (scully64 is the actual name of the PC). The final Bluetooth settings will look something like the figure below.


After the tablet has been 'paired' with the PC, you can now easily exchange files between these two devices. To receive a file from the tablet, follow these steps:

  1. First we need to enable the ability to receive files over Bluetooth on the Linux Mint PC. This setting can be found in the Menu -> Preference -> Personal File Sharing (see below). In the 'Receive Files over Bluetooth' section, enable 'Receive files in Downloads folder over Bluetooth' and 'Notify about received files'. Note that this setting only has to be done once. Click on the 'Close' button when done.


  2. Next, use a file manager (for example, the ES File Manager) on the tablet to select the file to send to the PC. Then select the file, use the 'Share' option, specify 'Bluetooth' and the A500 as the recipient for the file.
  3. The file transfer will start. While the transfer is in progress, a blue icon will appear on the PC's notification area (see figure below). To monitor the progress on the tablet, touch the 'upload' icon and the resulting display will tell you the percentage of the transfer that has been completed. Once the transfer has been completed, a notification will briefly appear on the screen of the PC.

Note that received files are found in the 'Downloads' directory on the Linux Mint PC. Any type of files can be transferred using Bluetooth. Just note that the transfer speed is very much slower than a direct connection between the devices - for example, a USB connection. However, if you have no other way of transferring files, then Bluetooth can save the day - provided, of course, that both the devices support Bluetooth.

To send a file over Bluetooth from the Linux Mint PC to the tablet, just follow these steps:
  1. First click on the Bluetooth icon the the PC's panel. The resulting display is as shown below.


  2. Then click on the 'Send Files to Device...' item. The display will change as shown below.

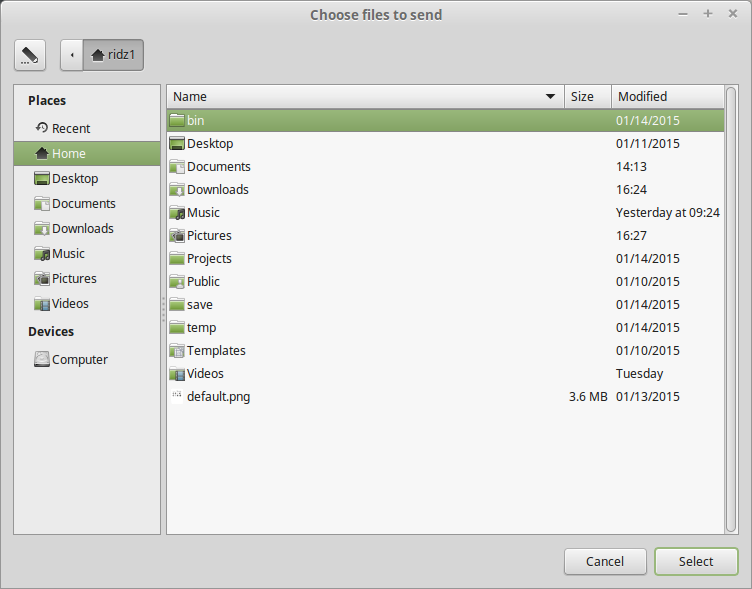

  3. Browse to the file to send and click on the 'Select' button. The display will change as shown below.


  4. Select the tablet A500 as the recipient of the file and click on the 'Send' button. The display will change as shown below.


  5. You will be asked by the A500 tablet whether to accept the file from the PC - say 'Yes' in this case.
  6. The display on the PC will change as shown below.

Once the file has been transferred, you will find the file in the 'bluetooth' folder in the main storage (usually 'sdcard') on the A500 tablet. Again, any type of files can be transferred using Bluetooth this way - albeit at very much slower speed than a physical connection.

There may be occasions that you may want to 'unpair' a device from the PC - for example, you have sold off the Android device. To remove (or unpair) a Bluetooth device (the tablet in this case) follow the steps below:
  1. On the tablet, touch "Settings" and enable Bluetooth (if it is off), then touch the "Bluetooth" item.
  2. On the screen that appears next, touch the option icon to the right of the PC name, then touch "Unpair". Then exit from here.
  3. On the PC, click on the Bluetooth icon in panel and select "Bluetooth Settings..."
  4. On the screen that appears next, select the device by clicking on it (see figure below) followed by a click on the "-" (minus) button below. You will be prompted to confirm the removal (see figure below) - click "Remove" to remove the device.



  5. The tablet will be removed (unpaired) - then close the settings window.
Be aware that Bluetooth operation can only take place for 'paired' devices. Also, be aware that leaving the Bluetooth services enabled on the devices will drain the battery faster - so remember to switch off Bluetooth after using it.

The process of 'pairing' a smartphone with a Linux Mint PC is very similar to that of a tablet. The only difference is the screen display on the smartphone and where the menu items are located on the smartphone. The process can be summarized as follows:
  1. On the smartphone, enable Bluetooth services and make it 'visible'.
  2. On the PC invoke 'set up a new device', let the PC 'discover' the smartphone, enter the PIN on the smartphone, and it will be 'paired'.
The process to transfer files, rename PC and/or devices, and 'unpair' devices remains the same for any devices.

At this point, all the hardware that the author wish to connect to Rebecca has been taken care of. Of course, there are other hardware than can be connected to Rebecca but this article only describes the hardware in the author's possession that are connected to Rebecca.

This is the end of Part 2. In the third part, we will continue with tuning Rebecca. Stay tuned.



Thursday, January 29, 2015

How To Remove OpenJDK 7 JRE From Linux Mint 17.1

Recently, I became curious as to whether it was possible to delete the default OpenJDK 7 JRE and switch to totally using Oracle's Java - including using Oracle's Java plugin for Firefox. This blog describes my experience with this effort, and the short answer is "Yes - it is possible". Here is how:

STEP 1: First you have to download the latest version of Oracle's Java SE (aka JDK) package and install it. To do this, first point your Firefox web browser to the Oracle SE download page here and download the latest version of the 64-bit JDK (not Server JRE or the JRE) - currently at version 8u31 (or 1.8.0_31). It is also recommended that you download the API docs and demos (+samples) for the JDK - although this is not required for Java program development. Once the packages have been downloaded, close the Firefox web browser and execute the following commands:

  cd Downloads
  tar xzvf jdk-8u31-linux-x64.tar.gz
  tar xzvf jdk-8u31-linux-x64-demos.tar.gz
  unzip jdk-8u31-docs-all.zip -d jdk1.8.0_31
  sudo mv jdk1.8.0_31/ /usr/lib/jvm/
  sudo chown -R root:root /usr/lib/jvm/jdk1.8.0_31
  cd ~


The above steps will uncompress the files downloaded to a 'jdk1.8.0_31' directory in the 'Downloads' folder. The 'jdk1.8.0_31' directory will then be moved to /usr/lib/jvm, where all the current Java files reside. The owner:group will then be set to 'root'.


WARNING: If you do not move the 'jdk1.8.0_31' directory to /usr/lib/jvm directory now, then the /usr/lib/jvm directory will be removed when you remove OpenJDK 7 later.


STEP 2: Then we have to remove the IcedTea plugin from Firefox. If you launch Firefox now, and type "about:plugins" in the location (URL) bar, it will show that 'IcedTea-Web Plugin (using IcedTea-Web 1.5 (1.5-1ubuntu1))' is one of the plugins installed. It will not be possible to remove this plugin using Firefox's -> Tools -> Add-ons as this plugin was installed by OpenJDK itself. So we have to turn to the Synaptic Packet Manager to do the job. Make sure that Firefox is closed, then launch Synaptic and enter 'icedtea' into the search box. Then mark the following items for complete removal:

  icedtea-7-plugin
  icedtea-plugin
  icedtea-7-jre-jamvm
  icedtea-netx
  icedtea-netx-common


Click the 'Apply' button to remove the marked files. You can then check whether the Firefox Java plugin has been removed by launching Firefox and typing "about:plugins" in the location (URL) bar. The resulting display should indicate that there is no Java plugin present now. Then close Firefox again. A quick look into the /etc/alternatives directory will also show that the 'itweb-settings', 'jexec' and 'mozilla-plugin.so' files has also been removed.

STEP 3: Now we will replace Firefox Java plugin by Oracle's version. Let me stress that this step is optional - if you wish to test Java applets in Firefox, go ahead and install this plugin - else just ignore this step.

First check whether there is a sub-directory called 'plugins' under the '.mozilla' directory (a hidden directory - hence the period before the name) in your home directory. The 'ls -la .mozilla' command is used to perform this check.

If this directory is not present then create the directory by executing the 'mkdir .mozilla/plugins' command within your home directory. Once this directory is present, its time to create a link to Oracle's Java plugin. The name of this plugin is 'libnpjp2.so' and is found in the /usr/lib/jvm/jdk1.8.0_31/jre/lib/amd64 directory. Execute the following commands:

  cd .mozilla/plugins
  ln -s /usr/lib/jvm/jdk1.8.0_31/jre/lib/amd64/libnpjp2.so .
  cd ~


Do not forget to include the period (.) in the second last command above. It denotes that the link will be created in the current directory (.mozilla/plugins). Once this link is created, launch Firefox again, type 'about:plugins' in the location box and the resulting display will show that Oracle's Java plugin is present. Also, if you click on Tools -> Add-ons, followed by selecting the 'Plugins' tab, you will see that the Java plugin is present.

STEP 4: Launch Synaptic again and this time, type 'openjdk' into the search box. Now mark the following files for complete removal:

  default-jre
  default-jre-headless
  openjdk-7-jre
  openjdk-7-jre-headless
  openjdk-7-jre-lib


Click the 'Apply' button to remove the marked files. If you look into the /usr/lib/jvm directory, you will find that there is now just one directory there -  the one containing Oracle's Java. The files in the /etc/alternatives directory will no longer contain links to Java.


NOTE: If you have set up links previously, you can now remove those links using the 'update-alternatives --remove-all itemname' (where itemname is the name of the Java link you wish to remove). Just make sure that you only remove the Java related links - removing other non-Java links may harm the whole system. It is safe to remove these links as there is one Java installed - Oracle's SE 8. The list of the files are:

  java
  javaws
  keytool
  orbd
  pack200
  policytool
  rmid
  rmiregistry
  servertool
  tnameserv
  unpack200



STEP 5: Now we have to set the environment variables and paths correctly for the whole system. If you have already set these variables previously, then you can safely skip this step. If not, execute the following command:

  sudo nano /etc/profile

This will execute the nano text editor and open the /etc/profile file for editing. Now add the following lines at the end of the file.

  export JAVA_HOME=/usr/lib/jvm/jdk1.8.0_31
  export PATH=$PATH:$JAVA_HOME/bin


Save the file and close it. Note that, upon system startup, these will set the JAVA_HOME and PATH environment variables for the whole system. The JAVA_HOME environment variable points to the JDK root while the PATH environment variable will add the /bin directory of the JDK to whatever path that has already been specified. This will enable the 'javac' command to be executed from any directory. Now log out and then log in again to the system in order to make sure that both the environment variables are set.

STEP 6: Check that you have correctly installed Oracle Java by executing the commands:

  echo $JAVA_HOME
  echo $PATH
  java -version
  javac -version


If you see the string 'jdk1.8.0_31' in the output to the above commands, then you have successfully removed OpenJDK 7 JRE and replaced it with Oracle SE 8.

Now whenever Oracle issue an updated version, all you have to do in order to use the new version of Java SE is to follow STEP 1, STEP 3 and STEP 5 above. Just make sure that you change the version number to the new version in the commands. No more messing around with 'update-alternative' commands - and that alone make this whole exercise worthwhile. Happy computing!

Monday, January 26, 2015

Fixing Oracle Java Alternatives Links on Linux Mint 17.1

A colleague of mine, after reading my blog on installing Oracle's Java (and updating it later) on Linux Mint 17.1, asked me several questions on the 'update-alternatives' command used to set the proper links after installing Java. After answering the queries, it occurred to me that it would be helpful for users of Oracle's Java to know this as my blog did not explain this command in detail.

What is the 'update-alternatives' command? The best way to answer this question the Linux way is, of course, by reading the 'man' documents. So go ahead and open a terminal and type the 'man update-alternatives' command. To quote the document - "update-alternatives creates, removes, maintains and displays information about the symbolic links comprising the Debian alternatives system" which about sums up the command. For more details, read the man document in full, making a note that the list of links is found in the /etc/alternatives file.

On a newly installed Linux Mint 17.1 system, only the OpenJDK 7 JRE is present by default. You can see what Java-related packages are installed by launching the Synaptic Packet Manager, then searching for 'openjdk'. The following files are installed (you may have to scroll down the list shown by Synaptic to see all the files):

  openjdk-7-jre-lib
  openjdk-7-jre
  openjdk-7-jre-headless
  icedtea-7-jre-jamvm
  icedtea-7-plugin
  default-jre

Another method to verify that only the JRE is installed, execute the following command in a terminal:

  update-alternatives --list java

You should see an output similar to the one shown below:

  /usr/lib/jvm/java-7-openjdk-amd64/jre/bin/java

As another verification, execute the following command:

  ls -la /etc/alternatives/java

You should see the following output:

  lrwxrwxrwx 1 root root 46 Jan 24 08:18 /etc/alternatives/java -> /usr/lib/jvm/java-7-openjdk-amd64/jre/bin/java

This should verify what is being said in the 'man' document. If you have the 'mc' (Midnight Commander) file manager installed on your system, launch it and take a look in the /etc/alternatives directory. In this directory, you will find all the alternative links already set up in the system. By browsing all the links in this directory, it can be determined that the following items are directly related to the currently installed OpenJDK 7 Java - i.e., those referring to files in the /usr/lib/jvm/java-7-openjdk-amd64 directory as the target.

  itweb-settings
  itweb-settings.1.gz
  java
  java.1.gz
  javaws
  javaws.1.gz
  jexec
  jexec.binfmt
  keytool
  keytool.1.gz
  mozilla-plugin.so
  orbd
  orbd.1.gz
  pack200
  pack200.1.gz
  policytool
  policytool.1.gz
  rmid
  rmid.1.gz
  rmiregistry
  rmiregistry.1.gz
  servertool
  servertool.1.gz
  tnameserv
  tnameserv.1.gz
  unpack200
  unpack200.1.gz

Note the files with the '.1.gz' in their names - these are 'man' (manual) files for the items - they are 'slave' links. You can test out these by executing 'man itemname', where itemname is the name of the command that you wish to view the 'man' pages for. The only two exceptions are for the 'jexec' command and the 'mozilla-plugin.so' plugin.

If you plan to install Oracle's Java on the system in order to carry out Android software development using Google's Android Studio, then you have to first download the latest version of the Java SE (aka JDK) package and install it. To do this, first point your web browser to the Oracle SE download page here and download the latest version of the  32-bit or 64-bit JDK (not Server JRE or the JRE) - currently at version 8u31 (or 1.8.0_31). It is also recommended that you download the API docs and demos (+samples) for the JDK - although this is not required for Android development on Android Studio. Once the packages have been downloaded, execute the following commands:

  cd Downloads
  tar xzvf jdk-8u31-linux-x64.tar.gz
  tar xzvf jdk-8u31-linux-x64-demos.tar.gz
  unzip jdk-8u31-docs-all.zip -d jdk1.8.0_31
  sudo mv jdk1.8.0_31/ /usr/lib/jvm/
  sudo chown -R root:root /usr/lib/jvm/jdk1.8.0_31
  cd ~


Note that the 'man' files are also supplied by Oracle and they are found in the /usr/lib/jvm/jdk1.8.0_31/man/man1 directory but, unfortunately, they are not compressed files. If you wish to compress them to save disk space, go ahead and do it, but note this is not required by the /etc/alternatives links.

Then you have to decide what to do with the OpenJDK 7 JRE. Do you, if at all possible, remove OpenJDK 7 JRE, or keep it and use the 'update-alternatives' command to set the proper links so that the system will use Oracle's Java as the default Java?

It is not advisable, however, to remove OpenJDK 7 JRE totally from Linux Mint 17.1 as the author found out by trying it using the Synaptic Packet Manager. Trying to remove OpenJDK 7 JRE will only result in the system installing the OpenJDK 6 JRE instead. This was probably due to the fact that the default web browser Firefox uses the IcedTeaPlugin for running Java applets.

That leaves only one method left and that is to fix all the links using the 'update-alternatives' command - including the slave links to the 'man' pages. This means that we have to install all the necessary links to Oracle's Java, using all the items in the list above, except for 'itweb-settings', 'itweb-settings.1.gz' and 'mozilla-plugin.so' (these are for the Firefox web browser only, so it will be safe to keep those links untouched). Then execute the following commands in a terminal:

  sudo update-alternatives --install "/usr/bin/java" "java" "/usr/lib/jvm/jdk1.8.0_31/bin/java" 1500 --slave "/usr/share/man/man1/java.1" "java.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/java.1"
  sudo update-alternatives --install "/usr/bin/javaws" "javaws" "/usr/lib/jvm/jdk1.8.0_31/bin/javaws" 1500 --slave "/usr/share/man/man1/javaws.1" "javaws.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/javaws.1"
  sudo update-alternatives --install "/usr/bin/keytool" "keytool" "/usr/lib/jvm/jdk1.8.0_31/bin/keytool" 1500 --slave "/usr/share/man/man1/keytool.1" "keytool.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/keytool.1"
  sudo update-alternatives --install "/usr/bin/orbd" "orbd" "/usr/lib/jvm/jdk1.8.0_31/bin/orbd" 1500 --slave "/usr/share/man/man1/orbd.1" "orbd.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/orbd.1"
  sudo update-alternatives --install "/usr/bin/pack200" "pack200" "/usr/lib/jvm/jdk1.8.0_31/bin/pack200" 1500 --slave "/usr/share/man/man1/pack200.1" "pack200.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/pack200.1"
  sudo update-alternatives --install "/usr/bin/policytool" "policytool" "/usr/lib/jvm/jdk1.8.0_31/bin/policytool" 1500 --slave "/usr/share/man/man1/policytool.1" "policytool.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/policytool.1"
  sudo update-alternatives --install "/usr/bin/rmid" "rmid" "/usr/lib/jvm/jdk1.8.0_31/bin/rmid" 1500 --slave "/usr/share/man/man1/rmid.1" "rmid.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/rmid.1"
  sudo update-alternatives --install "/usr/bin/rmiregistry" "rmiregistry" "/usr/lib/jvm/jdk1.8.0_31/bin/rmiregistry" 1500 --slave "/usr/share/man/man1/rmiregistry.1" "rmiregistry.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/rmiregistry.1"
  sudo update-alternatives --install "/usr/bin/servertool" "servertool" "/usr/lib/jvm/jdk1.8.0_31/bin/servertool" 1500 --slave "/usr/share/man/man1/servertool.1" "servertool.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/servertool.1"
  sudo update-alternatives --install "/usr/bin/tnameserv" "tnameserv" "/usr/lib/jvm/jdk1.8.0_31/bin/tnameserv" 1500 --slave "/usr/share/man/man1/tnameserv.1" "tnameserv.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/tnameserv.1"
  sudo update-alternatives --install "/usr/bin/unpack200" "unpack200" "/usr/lib/jvm/jdk1.8.0_31/bin/unpack200" 1500 --slave "/usr/share/man/man1/unpack200.1" "unpack200.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/unpack200.1"


The commands listed above install the links for the items and points to the files in the 'jdk1.8.0_31' directory as well as a slave link for the 'man' files. Note that the 'priority' option is set to 1500, a much higher number of the default value of 1071 for the OpenJDK 7 JRE. This was done to ensure that Oracle's Java has a higher priority than the OpenJDK Java. Note that the 'jexec' item was not installed. It most likely that this command is not needed for Android development as 'jexec' is mainly used by the system to allow execution of JAR files. Also note that 'jexec' is a wrapper and is invoked remotely through SSH. More information can be found here.

In order to avoid typing mistake while entering the above commands, it is suggested that you cut and paste the commands above. Of course, this is assuming that you have installed Oracle's Java in the /usr/lib/jvm directory - you may have to modify the commands above if you installed Java into a different directory.

Now that we have installed the links, we still have to tell the system which Java to use. Since we have used a priority of 1500 to install the links - which is higher than OpenJDK's 1071, we have already selected to use Oracle's Java in 'auto' mode. To verify this, execute the following command:

  sudo update-alternatives --config java

If you see an output similar to the one shown below, then you are set to use Oracle's Java. Note the asterisk (*) to the left of the first item - this denote the current selection.



Press the Enter key to keep the selection. If, later, you change your mind and wants to use OpenJDK instead of Oracle's Java, you can easily reverse the changes. This can be done using the 'update-alternatives' command with the '--set' or '--config' options - the only difference is that the '--set' option is non-interactive while the the '--config' option is interactive. It is up to you to use either option.

Notice that we have not set any links for the Java compiler 'javac'. If you do (or plan to do) a lot of Java programming at the command line, then it is suggested that you set up these links and tell the system which Java compiler to use as the default. To do this execute the following commands:

  sudo update-alternatives --install "/usr/bin/javac" "javac" "/usr/lib/jvm/jdk1.8.0_31/bin/javac" 1500 --slave "/usr/share/man/man1/javac.1" "javac.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/javac.1"

Since this is the only 'javac' item installed, it will be automatically set as the default 'javac'. You can, however, add another version of 'javac' - just make sure that the priority number is less than 1500, else you have to set the default 'javac' manually.

To test whether you have set up the links properly for both the 'java' and 'javac' commands, execute the following commands:

  java -version
  javac -version

If the output from the two commands above contains the string '1.8.0_31', then the links have been set up properly. The rest of the commands can only be tested if you use them directly - however, executing 'man' on these commands should display the proper 'man' pages.

Note that Oracle's SE (aka JDK) 8 have a lot more commands that were not installed using 'update-alternatives'. A peek into the /usr/lib/jvm/jdk1.8.0_25/bin directory should provide you with some idea of these commands. You can use the 'update-alternatives' command to install these if you so wish - just follow the same procedure listed above.

That's it - you now have a (somewhat) full systems that uses Oracle Java instead of the OpenJDK Java.

Friday, January 23, 2015

Upgrading Oracle JDK 8 on Windows

It was interesting to note that Oracle has just issued updates to their Java. What was NOT interesting to note, however, they STILL have not updated their documentations on HOW, exactly, does one goes about upgrading their present Java installation to their latest version. All I could find was instructions on INSTALLING their Java package and I searched their documentation very closely. Maybe I missed something but I swear that this is unbecoming of a major software vendor. What is wrong (and how much effort will it take) with issuing a simple note on how to upgrade their existing installation?

This article is specifically written to overcome the shortcoming of Oracle, and is targeted towards the Windows (specifically 7, 8 and 8.1) users of Oracle Java SE (or JDK) 8. It was written for users of Oracle JDK 8 Update 25 who wants to upgrade to Oracle JDK 8 Update 31 - the 64 bit version. With a little tweaking, it can also be used to update the 32 bit version as well.

I will assume that the user has installed Oracle's JDK 8 by following the instructions in my previous blog, which can be found here.

STEP 1: Point your web browser to Oracle's download site here and download the following files:

  jdk-8u31-windows-x64.exe
  jdk-8u31-windows-x64-demos.zip
  jdk-8u31-docs-all.zip

STEP 2: Double-click on the '.exe' file and follow the on screen instructions to install the JDK. Note that the previous version of the JDK (1.8.0_25 in this case) is still present on your system - just in case if you still want this - if not, you can go ahead and uninstall it using the Control Panel later.
If you have downloaded the demos (and samples) and docs, now would be a good time to install them. First unzip the demos to a temporary directory - this will create a 'jdk 1.8.0_31' sub-directory in which there will be two more sub-directories - 'demo' and 'sample'. Then unzip the 'docs' file to the same 'jdk 1.8.0_31' sub-directory just created. This will create another sub-directory called 'docs'. Then move all these 3 sub-directories ('demo', 'docs' and 'samples') to the actual Java directory, i.e., 'C:\Program Files\Java\jdk1.8.0_31'. You will have to give permission for this action since you are moving files into a 'system' type directory.

STEP 3:
Next we have to edit the JAVA_HOME system variable. To do this, right-click on the 'This PC' icon on your desktop and select 'Properties'. On the next screen that appears, click on the 'Advanced system settings' item. On the 'System Properties' window that appears, click on the 'Environment Variables' button. The 'Environment Variables' window will appear - click on the JAVA_HOME item. Then click on the 'Edit...' button and change the '1.8.0_25' to '1.8.0_31'. Then click the 'OK' button.

Scroll down the 'System variables' window until you see the 'Path' item, then click on it. Then click on the 'Edit...' button. The 'Edit System Variable' window will appear. Click anywhere in the 'Variable value' field and then press the End key on your PC. Then edit the last item and change the '1.8.0_25' to '1.8.0_31'. Click on OK, followed by another OK and lastly by another OK to close the System Properties window. Then close the System window.

STEP 4:
To make the new environment variables effective, log out from the system, then log in again. Open a Command Prompt and type the following commands:

  java -version

  javac -version
  echo %JAVA_HOME%
  echo %PATH%

If the output contains the string "1.8.0_31", then the update was successful. Now you can uninstall the old JDK using the Control Panel.

That's it - you are now using the updated Java. Happy computing!

Upgrading Oracle JDK 8 on Linux Mint 17.1

It was interesting to note that Oracle has just issued updates to their Java. What was NOT interesting to note, however, they STILL have not updated their documentations on HOW, exactly, does one goes about upgrading their present Java installation to their latest version. All I could find was instructions on INSTALLING their Java package and I searched their documentation very closely. Maybe I missed something but I swear that this is unbecoming of a major software vendor. What is wrong (and how much effort will it take) with issuing a simple note on how to upgrade their existing installation?

This article is specifically written to overcome the shortcoming of Oracle, and is targeted towards the Linux Mint 17.1 (Rebecca) users of Oracle Java SE (or JDK) 8. It was written for users of Oracle JDK 8 Update 25 who wants to upgrade to Oracle JDK 8 Update 31 - the 64 bit version. With a little tweaking, it can also be used to update other flavors of Linux. A separate forthcoming article will be written for the Windows platforms.

I will assume that the user has installed Oracle's JDK 8 by following the instructions in my previous blog, which can be found here.

STEP 1: Point your web browser to Oracle's download site here and download the following files:

  jdk-8u31-linux-x64.tar.gz
  jdk-8u31-linux-x64-demos.tar.gz
  jdk-8u31-docs-all.zip

STEP 2: Open a terminal and execute the following commands:

  cd Downloads
  tar xzvf jdk-8u31-linux-x64.tar.gz
  tar xzvf jdk-8u31-linux-x64-demos.tar.gz
  unzip jdk-8u31-docs-all.zip -d jdk1.8.0_31
  sudo mv jdk1.8.0_31/ /usr/lib/jvm/
  sudo chown -R root:root /usr/lib/jvm/jdk1.8.0_31
  cd ~

STEP 3: While still in the terminal, execute the following commands:

  sudo update-alternatives --remove java /usr/lib/jvm/jdk1.8.0_25/bin/java
  sudo update-alternatives --remove javac /usr/lib/jvm/jdk1.8.0_25/bin/javac
  sudo update-alternatives --install "/usr/bin/java" "java" "/usr/lib/jvm/jdk1.8.0_31/bin/java" 1500 --slave "/usr/share/man/man1/java.1" "java.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/java.1"
  sudo update-alternatives --install "/usr/bin/javac" "javac" "/usr/lib/jvm/jdk1.8.0_31/bin/javac" 1500 --slave "/usr/share/man/man1/javac.1" "javac.1" "/usr/lib/jvm/jdk1.8.0_31/man/man1/javac.1"

STEP 4: Edit the system-wide profile file by executing:

  sudo nano /etc/profile

Then modify the following lines in the file:

  export JAVA_HOME=/usr/lib/jvm/jdk1.8.0_31

Then save the file, exit the editor, close the terminal and either restart the PC or log off and log in again.

STEP 5: Test the updates by opening a terminal and executing the following:

  java -version
  echo $JAVA_HOME

If the output contains the string "1.8.0_31", then the update was successful.

That's it - you are now using the updated Java. Happy computing!



EDIT: This blog was edited to use the 'update-alternatives' command with 1500 as the 'priority' option in order to set the system to use Oracle's Java automatically. Because of this change, the 'update-alternatives --set' commands were removed.

Strictly speaking, it is not necessary to set the PATH environment variable to include the Java bin directory in order to execute the 'javac' command, but I leave this to user to decide. No harm will come to the system if you do this. The rest of the blog remains unchanged.

Take note that there are more Oracle Java commands that can be set by using 'update-alternatives', but the minimum required by Android Studio is given in this blog. For those who wants to set up a Oracle Java programming environment, read my blog here.



Wednesday, January 14, 2015

Tuning Rebecca (Linux Mint 17.1 Cinnamon) - Part 1

Rebecca is here! No not that beautiful blonde - but the beautiful Linux Mint 17.1 with the beautiful Cinnamon desktop. This article is all about tuning Rebecca so she is perfect to use - at least to me!

So you have installed Rebecca (aka Linux Mint 17.1 Cinnamon) and you are now staring at the desktop (see figure below) and wondering 'what next?'. Well, wonder no more as I take you on a journey on making Rebecca more beautiful!


As you can see from the desktop shown above, you are greeted by the 'Welcome Screen' right smack in the middle. As the name suggest, it welcomes and thanks you for choosing Linux Mint and also displays a number of icons (13 in all, if you counted!) of items that you are free to click upon in order to explore. For your information, all but 4 items (User Guide, Restore Data, Software Manager and Chat Room) will open the web browser (Firefox by default) and displays the contents for that item. The other 4 items are:
  • User Guide - a window similar to the one shown below will open displaying the contents of a user's guide to Linux Mint.


  • Chat Room - a window similar to the one shown below will open - in fact, this will launch HexChat, an IRC application pre-configured to log into the Linux Mint chat room on IRC. Note that it is extremely difficult to log into the channel - just click on the close button (the 'x' on the top right hand corner of the application window) if you are not successful in connecting to the channel.


  • Restore Data - you will be prompted to enter your password (this item requires admin's privileges) and then a window similar to the one shown below will open. This is the Backup Tool from which you can perform backup and restore of data.


  • Software Manager - you will also be prompted to enter your password (this item requires admin's privileges) and then a window similar to the one shown below will open. This is the Software Manager window from which you can select software for installing on your PC.


Remember to close the web browser (if open) and any other open application windows before proceeding any further. You can also close the Welcome Screen now. If you do not wish this screen to display upon system start up, remove the check mark on the 'Show this dialog at startup' text at the bottom of the welcome screen. Remember you can always display this screen later by clicking on Menu - Preference - Welcome Screen.

Updating Linux Mint

We start off by checking for updates to Linux Mint - this is normally indicated by the Update icon in the panel (lower right hand side of the screen). If there are any updates (which is normal for a newly installed Linux Mint) the the indicator will have an lower case 'i' in it as shown in the figure below. If you hover the mouse pointer over this icon the text 'A new version of the update manager is available' will be shown.



Click on the icon, and the Update Manager will start with all the upgradable items shown (see figure below).




Since there is only one item (mintupdate), you can start the update process by clicking on the Install Updates button. Another window will pop up (see figure below), asking for confirmation to install additional package(s). Click on OK to confirm.



Since updating the system requires admin's privileges, you will be asked to authenticate by entering your password (see figure below). Do so and then press the Authenticate button.



The update will start to download as shown on the figure below.



Once the update is downloaded, it is installed and the Update Manager will display more updates as shown in the figure below.



Before the update process is started, I normally set a preference to select and trust all security updates - this is an optional choice. Usually you will only see updates from level 1-3 (which are considered to be safe), but you can make an exception for level 4 and 5 security updates as I have done here. This can be done (as I have) by clicking on Edit and selecting Preferences. A window similar to the one shown below will appear. Then I place a check mark on on the 'Always select and trust security updates' and click on the Apply button.



As usual, you need to enter your password to authenticate.



Enter your password and then press the Authenticate button. The downloading of all the package files will begin.



Once all the files have been downloaded, the installation process will begin.



When all the updates have been installed, Update Manager will then appear again, this time with a blank window (if you have set the preferences just like me), indicating that all updates have been successfully installed.



You can close Update Manager now. Notice that the lower case 'i' in the update icon on the panel has changed to a green check mark - indicating that the system is up-to-date.



Note how useful is the update notification in the panel area - they tell you whether there are any updates that are available for the system at any time. However, you may want to check for updates manually on occasion. This can be easily done by clicking Menu -  Preference - Update Manager (see figure below).



That's it - you now have a fully updated Linux Mint system - Rebecca would be pleased!

Changing the Desktop Background

The next thing that I normally do is to change the desktop background from the awful looking (sorry, Clem) default Linux Mint desktop. This can be easily accomplished by right-clicking on a blank area of the desktop. A window similar to the one shown below will pop up.


Select 'Change Desktop Background' from the window and another window will pop up (see figure below). This window is part of the System Settings and from this window, it is possible to select a more suitable (and beautiful) desktop background - and also, make the background images change automatically and other cool stuff. Feel free to explore all the options. Don't forget to close the Backgrounds window when done.


My personal preference for a desktop background is 'The Trail' from, what else, Rebecca's choice of images. My final desktop looks like this:


Rebecca is looking more and more beautiful!

Setting up WiFi

Normally, my Internet connection is via an Ethernet network connection. Occasionally, I use a WiFi 'dongle' with my PC to connect to another Internet network connection. I will show you how to set up this connection using the 'Network' icon on the panel. If you hover the mouse pointer over the network icon, the text 'Connected to the wired network' is shown (see figure below).


Click on this icon, and a menu will pop up as shown in the figure below.


If your WiFi 'dongle' works (and is recognized by the PC), you will see both the 'Wired' and 'Wireless' items as shown in the figure. Then click on the wireless item you want to connect to, and a window will pop up (see figure below) asking you for the authentication password. Enter it and press the 'Connect' button (which will be enabled if you enter the correct password - else it will remain 'greyed out').


If you have successfully connected to the wifi network, a notification will appear briefly on your desktop. If you click on the network icon, the active wifi connection will have a 'dot' to the left of its name (see figure below).


I normally switch off the wired connection at this point by clicking on the 'switch' to the right of the 'Wired' item. If successful, another notification will appear briefly on the desktop and the menu will look something like the figure below.


Notice also that the network icon has changed as shown in the figure. This is an indication that your Internet connection is now via WiFi.

Adjust Audio Volume

I usually adjust the audio volume to a higher level using the sound icon found in the panel. Because of my loudspeakers input level, I adjust the level to about 85% as shown in the figure below.


The level is set by dragging the 'knob' using the mouse to the required level. To test out the level, click on the 'Sound Setting' item - a window similar to the one shown below will open.


Click on the Test Sound button and another window will open (see figure below) - click on the Test buttons for the left or right channels in order to test the sound levels.


Click on the Close button when done. You will beck at the Sound setting window - click on the Input tab. Here you can set the input microphone device and levels. Since I have a Logitech Webcam model C250 with a built-in microphone, I set that as my input device and the input level for this is as shown in the figure.


The Sound settings window was then closed.

Setting Up A Terminal

Simply put, a terminal (or console) is a place from where you execute a Linux command line. It is useful as it allows you to execute esoteric commands otherwise not available as GUI applications. As a programmer, I particularly find it useful - your mileage may vary here.

If you spend a lot of time in the terminal, then setting it up properly is a must - the process is fairly simple and is as follows. Click on the Terminal icon in the panel (see figure below) and it will launch.


Then right-click on a blank area of the terminal and the menu will appear as shown. Select Profile and Profile Preference as shown in the figure below.


A window labelled Editing Profile "Default" will appear as shown below.



I prefer a terminal using a larger font size (12 points) and the physical size of the terminal to display 110 characters in 34 rows. So I set the profile as shown in the figure below.


To set the profile and close the window, the Close button was clicked. The terminal was then closed (via a Ctrl-D key sequence) and re-opened using the terminal launcher. The final terminal looks like the one showed below.


Installing Software From A Terminal

Rebecca (aka Linux Mint) gives you 3 main methods of installing sofware; namely, the new Software Manager, the old and trusty Synaptic Packet Manager and lastly, for the geek (or nerd - take your pick) in you, the Terminal's command line. This section shows you how to install software from a command line in a terminal.

Launch a terminal, and type the following command and press the Enter key:

  sudo apt-get install mc

This command will execute the apt-get - the APT package handling utility for command line, and will install mc - a terminal-based file manager. First it will prompt you for your password - the sudo command allows you to execute commands at the admin's level. Enter your password and press the Enter key. It will then check the system and if the package exists, it will prompt you to continue or cancel. Press the Enter key to say 'Yes'. It will then start to download the package and, when finished, will start to install it. If successful, you will the see the prompt again without any error messages. The screen display below illustrate the whole process.



While the terminal is open, you can now start the mc software. Enter mc (followed by the Enter key) and the screen shown below will appear.



In case you are wondering why I use this file manager instead of the GUI file manger (Nemo), there are some things that this file manager can do that Nemo cannot. In any case, I am an 'old-school' Linux user and mc happens to be one of my favourite command line file manager.

While mc is open, you can explore it to your heart's content - when you have finished playing around with it, close it by pressing the F10 (or click on the Quit 'button' at the right-hand bottom) and the pressing the Enter key to confirm you really want to quit mc.

To close a terminal, you can either type the exit command or press the Ctrl-D key sequence.

Installing Hardware

I have a fair bit of hardware, like printers, scanners, etc., that I want to use with Rebecca. This section is all about installing them - your choices of hardware may differ from mine so view this section as a guide for hardware installation in general.

a) Installing Printers

Most modern printers (lasers and inkjets) uses USB connections, so it's just a matter of connecting them to Rebecca, switching them on, and then using System Settings to add the printer(s). The System Settings can be started from clicking on Menu and selecting the icon as shown in the figure below.


The System Settings window will open (see figure below). The Appearance and Preference items will be displayed. If you scroll down, the Hardware and Administration items will be shown (see figure below).




We need to use the Printers (under Hardware) item for adding printer(s) - so click on that and a new window will pop up (see figure below).



Click on Add - the New Printer window will appear (see below). Note that 'Enter URL' is selected by default - however, since we are NOT using a networked printer, and that the printer we have connected to Rebecca has been detected (an HP Laserjet Professional P1102, in my case here) has already been detected.



So we click on the correct printer (HP Laserjet Professional P1102) as shown in the figure below.



Click on the Forward button. The drivers for the printer will be searched for, and if found, it will be installed and the screen will change to one similar to the one shown below.


You can make any changes here (I shortened the short printer name to HPLJ-Pro-P1102) and then click the Apply button. Another window will pop up (see below) asking you whether you want to print a test page. I suggest you do so and click on the Print Test Page button.



A confirmation that the test page has been sent to the printer will appear (see below). Click on the OK button to close the window.



You should check the printer to see if the test page has been printed correctly - in my case, it had. The Printer Properties window (see below) will appear. You can set anything here - notice the amount of information on the printer! In addition, you can also perform other tasks by using the 3 buttons located at the bottom of this window. Click OK to dismiss this window.


The Printers window will appear again (see below) - this time with the newly added printer appearing in the window. Notice the check mark on the icon for this printer. Since it is the only printer (so far) in the system, it is marked as the default printer - hence the check mark.


You can go ahead to add more printers at this stage by clicking on the Add button or you can close this window if you have completed adding printers.


b) Installing Scanners

By comparison, installing a scanner (I have two) to Rebecca is not as simple and straightforward as installing printers. There is no Scanners item under Hardware in System Settings - and therein lies the problem. If Linux Mint (or any Linux, for that matter) makes this as easy (are you listening, Clem?) as installing printers, then I can safely say that Linux have come a long, long way to matching ease-of-use to Windows and Mac OS X.

The first scanner I have is an Epson Perfection V330 Photo scanner - do not be fooled by the term "Photo" in the name - it is a general purpose scanner. As it is a USB device, I plugged it using the USB cable supplied and powered it on. I then launched the Simple Scan program (Menu - Graphics - Simple Scan) and the result is as shown in the figure below.


As you can see, the Epson scanner was not detected and there was no way I could proceed any further until I have the correct drivers from the manufacturer (Epson, in this case) and installed them on Rebecca.

I was fortunate in finding drivers and software for this scanner from the Epson Download Center (URL is here). After filling in 'V330' and 'Linux' in the search boxes (see figure below), and clicking on search, I was presented with a list of of available software as shown.



By clicking on the Download button for the first item in the list, I arrived at the page shown below. By scrolling down, I managed to spot the Accept button - on which I clicked.



I was then presented by the list shown below. Knowing that my Rebecca uses the '.deb' file format and is a 64-bit PC, and guided by the FAQ (link shown on web page), I downloaded the 'iscan_2.30.0-1~usb0.1.ltdl7_amd64.deb' and 'iscan-data_1.33.0-1_all.deb' files, which, by default, to the Downloads folder.



The procedure was repeated for the second item in the first list (close the current window and you will be back at this list) and the file was downloaded. You should now have 3 Epson driver files in the Downloads folder. They are as listed below:

iscan-data_1.33.0-1_all.deb
iscan_2.30.0-1~usb0.1.ltdl7_amd64.deb
esci-interpreter-perfection-v330_0.2.0-1_amd64.deb

I could have used the GDebi program (Menu - Administration - GDebi Package Installer) to install the downloaded files but instead I selected to use a Terminal and show you how to install the files from a command line. First, of course, is to launch a Terminal. Click on the item in the panel or, alternatively, click on Menu, then click on the Terminal icon found there - either way, a Terminal is launched. Then enter the following command to switch to the Downloads folder.

  cd Downloads

The switch to the admin (root) mode by executing:

  su

Enter your password when prompted. Then execute the following command.

  apt-get install xsltproc

This command is to install the 'xsltproc' package to meet one of the requirement (or dependencies) of the iscan program. Then execute the following command.


  dpkg -i ./iscan-data_1.33.0-1_all.deb

This command will execute the dpkg package installer (the grand-daddy of the DEB package manager) and install the 'iscan-data_1.33.0-1_all.deb' package found in the Downloads folder. In a similar manner, execute the following command.

  dpkg -i ./iscan_2.30.0-1~usb0.1.ltdl7_amd64.deb

and:

  dpkg -i ./esci-interpreter-perfection-v330_0.2.0-1_amd64.deb

If you don't see any error messages resulting from the execution of any of the commands above, then you have successfully installed the iscan program for the Epson V330 scanner. Exit from the admin (root) mode by pressing the Ctrl-D key sequence.

Now plug in the Epson scanner and switch it on. Then launch the iscan program by either executing 'iscan' from the Terminal or clicking on Menu - Graphics - Image Scan! for Linux. Either way, you should see the following display.



NOTE: If you see a screen similar to the one below, then you have run into problems with the scanner. First check whether the scanner is connected to a USB port and powered on. Usually, fixing these will solve the problem but if you still see the screen below, then check whether you have installed all the files mentioned above IN THE ORDER indicated. Failing to do this will cause the problem. Un-install the files and try again. Should all fail, go the Linux Mint forum and search for a solution.




A test scan was then performed using the test page of the HP LaserJet P1102 that was installed in the previous section. The Preview button was pressed and the scanner started scanning the document - with the result shown in the figure below.


The image was then scanned using the Scan button, and upon completion, another window popped up (see below) for saving the image file to a destination with the suggested file name.



The OK button was pressed and the image file was saved to the Documents folder with the name 'default.png'. A quick check revealed the file was there and then viewed using the Image Viewer.

As a last test, the Simple Scan program (Menu - Graphics - Simple Scan)was again launched. This time there was no error message and a scan of the same test page was performed with the end result as shown in the figure below.


The Epson Perfection V330 Photo scanner has now been successfully installed.

As mentioned previously, I have another scanner - a HP ScanJet Professional 1000 Mobile Scanner - mostly used with my laptop as a mobile scanner since all the power it need to operate is from the USB port (hence the 'mobile' name). Plugging this scanner in a USB port on Rebecca and starting the Simple Scan program produces the same error message - 'No scanners detected'.

This time I was not so lucky in finding drivers as in the case of the Epson scanner. To cut a long story short, the HP scanner WILL NOT work on Rebecca and, to the best of my understanding, HP do not plan to support this scanner with Linux at all. End of story. This brings home the point that, with Linux (any Linux), do not depend on the manufacturer of the hardware to supply Linux drivers or software for that product.

c) Connecting a Digital Camera

Most of us will have (at one time or another) a digital camera, whether a simple point-and-shoot unit or a more sophisticated DSLR unit. One of common things, however, of these units, are attaching it to a PC for image transfer to do further processing on the images taken by the camera. Most digital camera manufacturers will supply software to transfer and process these images; but those software mainly works on Windows and Mac. They very rarely supply software for Linux.

Fortunately, Linux is able to read the memory storage (whether CF, or SD cards, or other types of memory cards) and also the ability to transfer files from these cards to the PC over USB. Note that most digital cameras will have a USB connection, as well as store the camera images on the memory cards under a standard folder - the DCIM folder. Provided the digital camera's manufacturer follows these 'standard', it will be extremely easy for image transfer to a Linux Mint PC - just follow these steps.

First connect the digital camera to the PC via a USB cable. Most manufacturers supply these cables - use these instead of a standard USB cable - you just don't know what the manufacturers have done with the cable and it is advisable to use these.

Then switch on the power to the digital camera. If you are lucky and the manufacturer of the digital camera follows standards, a window will pop up (see figure below) asking you what to do. I have a Canon PowerShot A550 digital camera - so it was gratifying to see that it was detected, as evident by the title in the window and the icon labelled 'Canon Digital Camera' that appeared on my desktop (see figure below).



Since the purpose of this exercise is the transfer of images from the camera to the PC, the images from the camera was imported using gThumb, a software installed by default on Linux Mint 17.1 for just this purpose. This action was selected by clicking on the 'down arrow' in the window and the text 'Ask what to do' was replaced with 'Import with gThumb' (see figure below). Note that you could make this the default action by placing a check mark on the 'Always perform this action' item. Next, the OK button was clicked.


Another window will pop up (see below) - the images to import were selected by using a Ctrl-Click sequence, followed by clicking on the Import button.



Note that the images will be imported to the Pictures folder by default - you can change this if you wish - for example a sub-folder off the Pictures folder called Canon Camera. There are other items that you can set if you wish - click on the Import button when finished. The main gThumb window wll the open as shown below.




There are a fair bit of things that you can do with gThumb, but mainly this software is useful for light editing of the images, sharing the images and printing the images. If you want to do some heavy editing then you need to use a heavyweight software like Gimp - which is installed by default on Rebecca (Menu - Graphics - Gimp Image Editor) and is shown in the figure below.




To disconnect the camera from the PC, simply switch off the camera and then disconnect the USB cable.


This is the end of Part 1. In the second part, we will continue with connecting other hardware like smart phones and tablets using USB, Bluetooth and other methods. Stay tuned.
